The root name servers are clearly important to resolution. Because they're so important, DNS provides mechanisms -- such as caching, which we'll discuss a little later -- to help offload the root name servers. But in the absence of other information, resolution has to start at the root name servers. This makes the root name servers crucial to the operation of DNS; if all the Internet root name servers were unreachable for an extended period, all resolution on the Internet would fail. To protect against this, the Internet has 13 root name servers (as of this writing) spread across different parts of the network. For example, one is on PSINet, a commercial Internet backbone; one is on the NASA Science Internet; two are in Europe; and one is in Japan.

Being the focal point for so many queries keeps the roots busy; even with 13, the traffic to each root name server is very high. A recent informal poll of root name server administrators showed some roots receiving thousands of queries per second.

Despite the load placed on root name servers, resolution on the Internet works quite well. Figure 2-12 shows the resolution process for the address of a real host in a real domain, including how the process corresponds to traversing the domain name space tree.

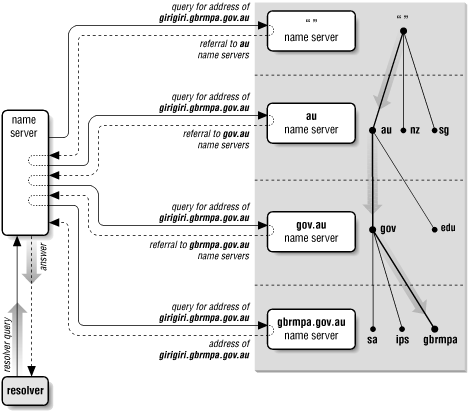

Figure 2-12. Resolution of girigiri.gbrmpa.gov.au on the Internet

Why couldn't the local name server simply have referred the resolver to another name server? Because a stub resolver wouldn't have had the intelligence to follow a referral. And how did the name server know not to answer with a referral? Because the resolver issued a recursive query.

Queries come in two flavors, recursive and iterative (or nonrecursive). Recursive queries place most of the burden of resolution on a single name server. Recursion, or recursive resolution, is just a name for the resolution process used by a name server when it receives recursive queries. As with recursive algorithms in programming, the name server repeats the same basic process (querying a remote name server and following any referrals) until it receives an answer. Iteration, or iterative resolution, described in the next section, refers to the resolution process used by a name server when it receives iterative queries.

In recursion, a resolver sends a recursive query to a name server for information about a particular domain name. The queried name server is then obliged to respond with the requested data or with an error stating that data of the requested type doesn't exist or that the domain name specified doesn't exist.[14] The name server can't just refer the querier to a different name server because the query was recursive.

[14]BIND 8 name servers can be configured to ignore or refuse recursive queries; see Chapter 11, "Security", for how and why you'd want to do this.

[15]The exception is a name server configured to forward all unresolved queries to a designated name server, called a forwarder. See Chapter 10, "Advanced Features", for more information on using forwarders.

Using the closest known name servers ensures that the resolution process is as short as possible. A berkeley.edu name server receiving a recursive query for the address of waxwing.ce.berkeley.edu shouldn't have to consult the root name servers; it can simply follow delegation information directly to the ce.berkeley.edu name servers. Likewise, a name server that has just looked up a domain name in ce.berkeley.edu shouldn't have to start resolution at the roots to look up another ce.berkeley.edu (or berkeley.edu) domain name; we'll show how this works in Section 2.7, "Caching".

The name server that receives the recursive query always sends the same query that the resolver sends it, for example, for the address of waxwing.ce.berkeley.edu. It never sends explicit queries for the name servers for ce.berkeley.edu or berkeley.edu, though this information is also stored in the namespace. Sending explicit queries could cause problems: there may be no ce.berkeley.edu name servers (that is, ce.berkeley.edu may be part of the berkeley.edu zone). Also, it's always possible that an edu or berkeley.edu name server already knows waxwing.ce.berkeley.edu's address. An explicit query for the berkeley.edu or ce.berkeley.edu name servers would miss this information.

BIND name servers use a metric called roundtrip time, or RTT,to choose between name servers authoritative for the same zone. Roundtrip time is a measurement of how long a remote name server takes to respond to queries. Each time a BIND name server sends a query to a remote name server, it starts an internal stopwatch. When it receives a response, it stops the stopwatch and makes a note of how long that remote name server took to respond. When the name server must choose which of a group of authoritative name servers to query, it simply chooses the one with the lowest RTT.

Before a BIND name server has queried a name server, it gives it a random RTT value, but lower than any real-world RTT. This ensures that the BIND name server queries all of the name servers authoritative for a given zone in a random order before playing favorites.

On the whole, this simple but elegant algorithm allows BIND name servers to "lock on" to the closest name servers quickly and without the overhead of an out-of-band mechanism to measure performance.

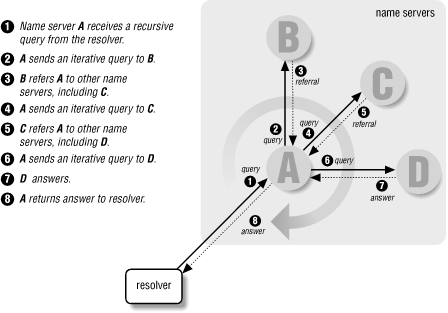

Figure 2-13. The resolution process

Actually, there's a better solution that's both clever and effective. Because it's easy to find data once you're given the domain name that indexes that data, why not create a part of the domain name space that uses addresses as labels? In the Internet's domain name space, this portion is the in-addr.arpa domain.

Nodes in the in-addr.arpa domain are labeled after the numbers in the dotted-octet representation of IP addresses. (Dotted-octet representation refers to the common method of expressing 32-bit IP addresses as four numbers in the range to 255, separated by dots.) The in-addr.arpa domain, for example, could have up to 256 subdomains, one corresponding to each possible value in the first octet of an IP address. Each of these subdomains could have up to 256 subdomains of its own, corresponding to the possible values of the second octet. Finally, at the fourth level down, there are resource records attached to the final octet giving the full domain name of the host at that IP address. That makes for an awfully big domain: in-addr.arpa, shown in Figure 2-14, is roomy enough for every IP address on the Internet.

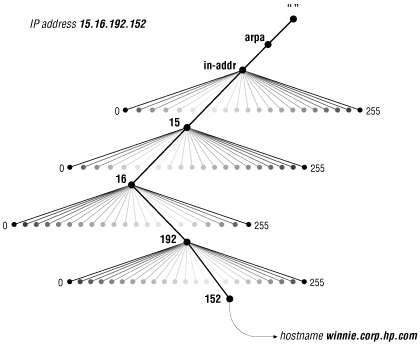

Figure 2-14. The in-addr.arpa domain

IP addresses are hierarchical, however, just like domain names. Network numbers are doled out much as domain names are, and administrators can then subnet their address space and further delegate numbering. The difference is that IP addresses get more specific from left to right, while domain names get less specific from left to right. Figure 2-15 shows what we mean.

Figure 2-15. Hierarchical names and addresses

That exhaustive search is to some extent possible, and it's called an inverse query. An inverse query is a search for the domain name that indexes a given datum. It's processed solely by the name server receiving the query. That name server searches all its local data for the item sought and, if possible, returns the domain name that indexes it. If it can't find the data, it gives up. No attempt is made to consult another name server.

Because any one name server knows about only part of the overall domain name space, an inverse query is never guaranteed to return an answer. For example, if a name server receives an inverse query for an IP address it knows nothing about, it can't return an answer, but it also doesn't know that the IP address doesn't exist, because it holds only part of the DNS database. What's more, the implementation of inverse queries is optional according to the DNS specification; BIND 4.9.8 still contains the code that implements inverse queries, but it's commented out by default. Neither BIND 8 nor BIND 9 includes that code at all, though they do recognize inverse queries and can make up fake responses to them.[16] That's fine with us, because very little software (such as archaic versions of nslookup) actually still uses inverse queries.

[16]For details on this functionality, see "Query Refused," in Chapter 12, "nslookup and dig".
